In the development process of TCQYS cylindrical primary cleaning screen, based on the principle of “easy to use, applicable and durable”, the computer optimized design achieves beautiful appearance, reasonable structure, convenient operation and maintenance. It is suitable for cleaning large and small impurities in granular materials, such as stones, hemp ropes, sand, dust, etc. It has high output, low energy consumption and strong reliability. It is an ideal equipment for cleaning large and small debris at the same time.

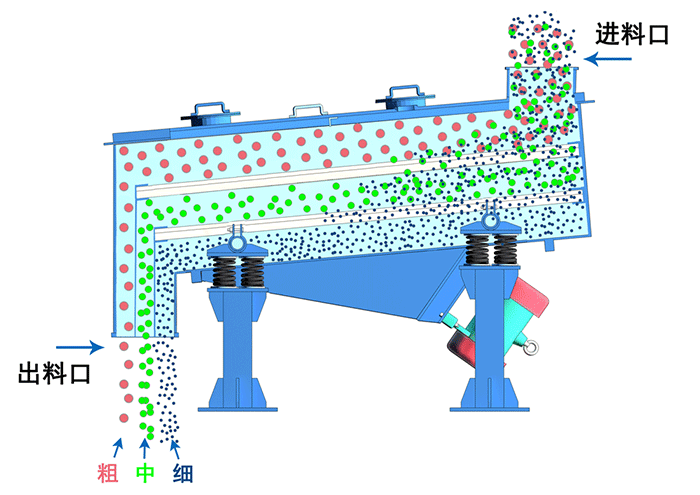

1. The double-layer screen drum handles large and small debris respectively.
2. The screen drum is supported by rollers, with large load-bearing capacity and higher output. The angle of the screen drum can be adjusted to adjust the production capacity and cleaning effect.
3. The top of the machine and the lower part of the discharge hopper are reserved for air suction ports, which are more hygienic and clean.
4. There are two options: fixed and mobile, allowing users to choose advanced processing methods and high-quality materials.
5. Electrostatic spraying surface treatment.
| Technical Parameters Specifications Model | Screen size width x length (cm) | Processing pellet material output (T/h) | Screen inclination angle | Vibration direction angle |
Amplitude (mm) |
Power (kw) |
Weight (kg) |
Motor speed (R/min) |
Overall dimensions (length x width x height) |
| primary cleaning | primary cleaning | primary cleaning | |||||||
| MFZDS100x200 | 100×200 | 10-30 | 12 | 25 | 4~5.5 | 2×0.37 | 900 | 960 | 2335x1450x1550 |
| MFZDS125x200 | 125×200 | 10-35 | 12 | 25 | 4~5.5 | 2×0.37 | 1050 | 960 | 2400x1890x1900 |
| MFZDS150x200 | 150×200 | 15-45 | 12 | 25 | 4~5.5 | 2×0.75 | 1250 | 960 | 2450x1700x1650 |
| MFZDS180x200 | 180×200 | 15-55 | 12 | 25 | 4~5.5 | 2×1.1 | 1050 | 960 | 2450x2460x1700 |
| MFZDS180x270 | 180×270 | 20-60 | 15 | 25 | 4.5～5.5 | 2×1.5 | 1400 | 960 | 3100x2460x1900 |
| MFZDS200x250 | 200×250 | 20-80 | 15 | 25 | 4.5～5.5 | 2×1.5 | 2200 | 960 | 2850x2660x2050 |
| MFZDS300x250 | 300×250 | 20-100 | 15 | 25 | 4.5～5.5 | 2×1.5 | 2800 | 960 | 3030x3580x2360 |
