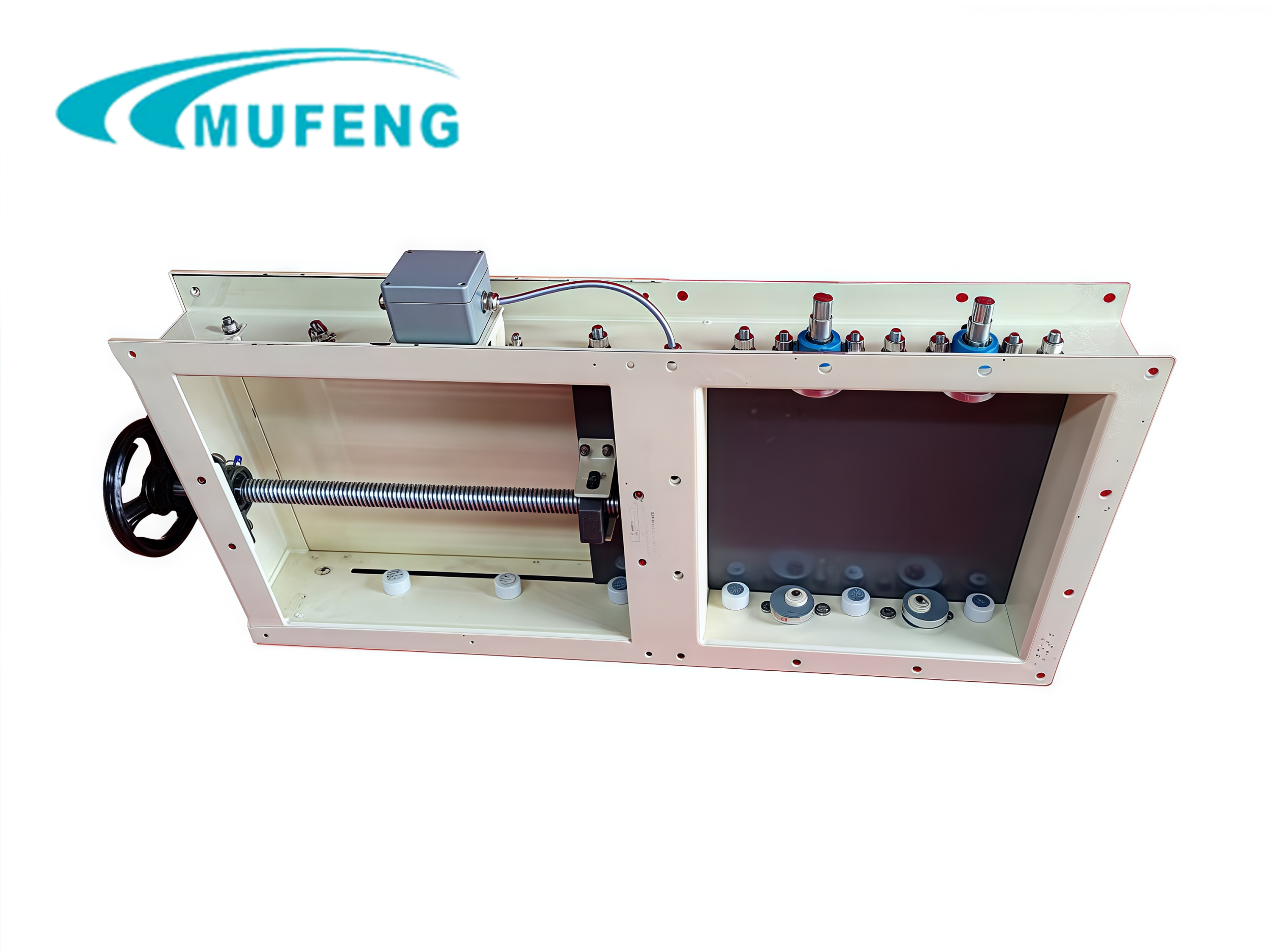

TZMQ pneumatic gate is mainly used to control the material selection and discharge,and is applicable to grain,oil and feed processing plants.A magnetic switch cylinder is used on the bin bottom or elephant trunk along with the features of quick movement,stable and reliable working,convenient operation and control,and the opening of the gate can be adjusted by adjutng the position of the magneteswtch,thus to regulate the material flow.
| Inlet and outlet size ( m m) | Working pressure(mpa） | Through flow (t/h） | |
| TZMQ 20×20 | 200 | 0.4-0.8 | 25 |
| TZMQ 25×25 | 250 | 0.4-0.B | 0 |
| TZMQ 30×30 | 300 | 0.4-0.8 | 60 |
| TZMQ 35×35 | 350 | 0.4-0.B | 80 |
| TZMQ 40×40 | 400 | 0.4-0.8 | 150 |
| ZMQ 45×45 | 450 | 04-08 | 200 |
| TZMOV 20×20 | 200 | 0.4-0.8 | 25 |
| TZMQV 25×25 | 250 | 0.4-0.8 | 40 |
| TZMQV 30×30 | 300 | 0.4-0.8 | 60 |
| TZMCV 35×35 | 350 | 0.4-0.8 | 0 |
| TZMCN 40×40 | 400 | 04-0.B | 150 |
| ZMOV 45×45 | 450 | 0.4-0.8 | 200 |
