This machine has the advantages of reasonable design, simple structure, smooth operation, fully enclosed structure, no dust and stains, anti-blocking holes, anti-sticking net, etc. Due to the adoption of the principle of plane rotary motion, the dynamic to static ratio and basic dynamic load of the equipment are effectively reduced. This equipment uses a plane rotary vibrating screen to vibrate up and down, and there is an automatic cleaning device under the screen. Compared with the traditional linear screen, it improves the life of the screen, has low noise and a large screening area, and increases the efficiency from the original 93~95 to 98.5 , can better screen out large particles and powder materials in pellets and obtain suitable particle lengths. It is widely used in screening operations in chemical industry, grain processing, refractory materials, building materials and other industries.

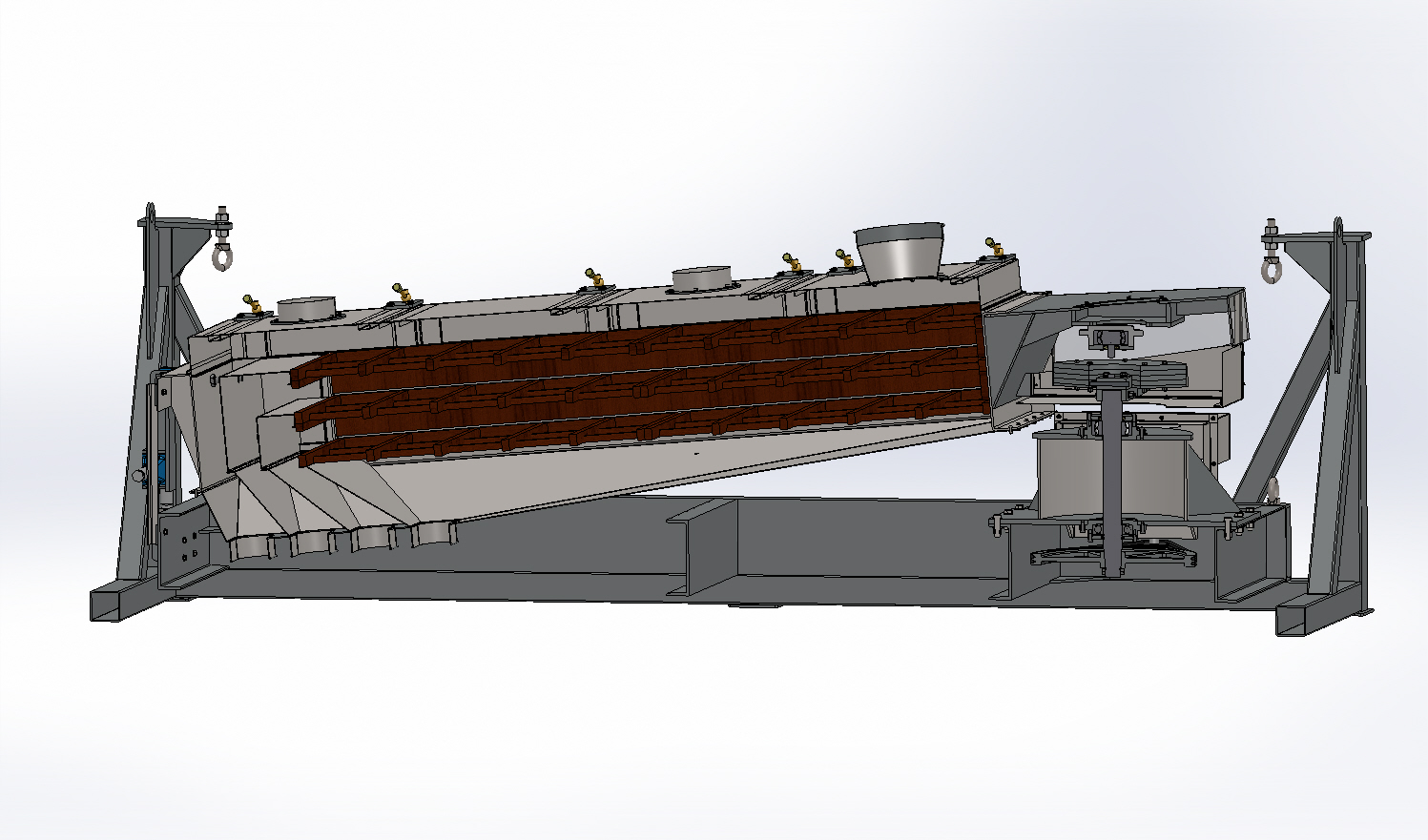

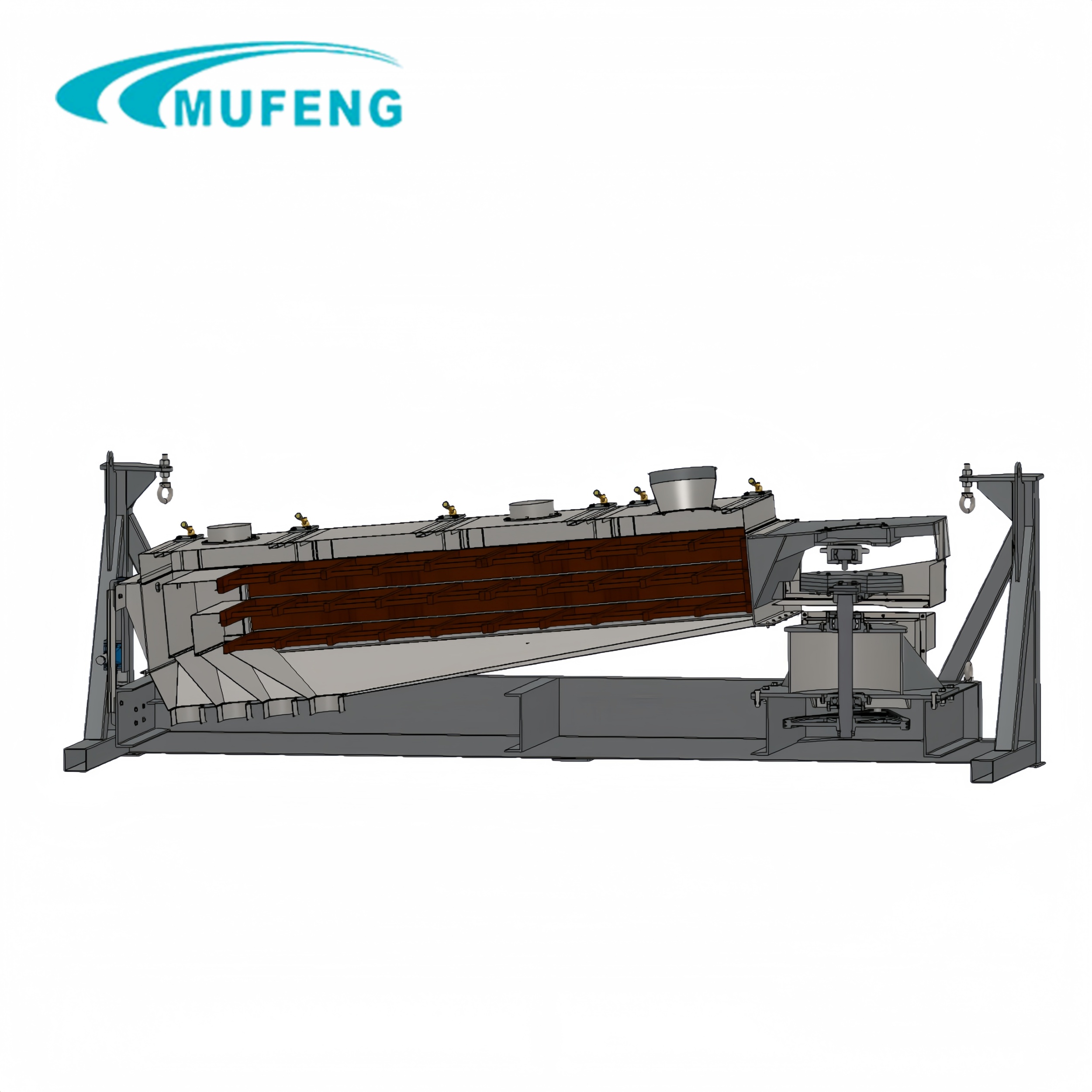

1. A screening machine in which the screen body performs horizontal rotary motion (the trajectory is a horizontal circle).
2. No vertical vibration, long screen life (6-12 months).
3. Each layer of screen is equipped with a screen anti-blocking and cleaning device. The screen does not block holes and extends the operating cycle. The screening machine continuously cleans the screen in working condition.
4. Due to the adoption of the plane rotation principle, the distribution of materials is significantly improved, thereby increasing the effective utilization of the screen surface, ultimately improving the screening efficiency and reducing the powder content in the finished materials.
5. The fully enclosed structure has no dust pollution and improves the working environment of operators.
6. The dynamic load on the foundation is very small.
| Model parameters | SFJH800 | SFJH1250 | SFJH1500 | SFJH1650 | SFJH1850 | SFJH2100 |
| Yield(t/h) | 3-5 | 11-15 | 15-20 | 18-22 | 22-25 | 30-40 |
| Equipped with power(kw) | 1.5 | 3 | 4 | 5.5 | 7.5 | 15 |
