Material guiding design (optional) and adjustable roller gap for more flexible crumbling process, achievable pellet size as small as 0.8mm~1.5mm
It is a specialized equipment for crushing large particles into small particles, which can crush various specifications of particle materials into particles of 0.6-1.5mm or 1-2.5mm;

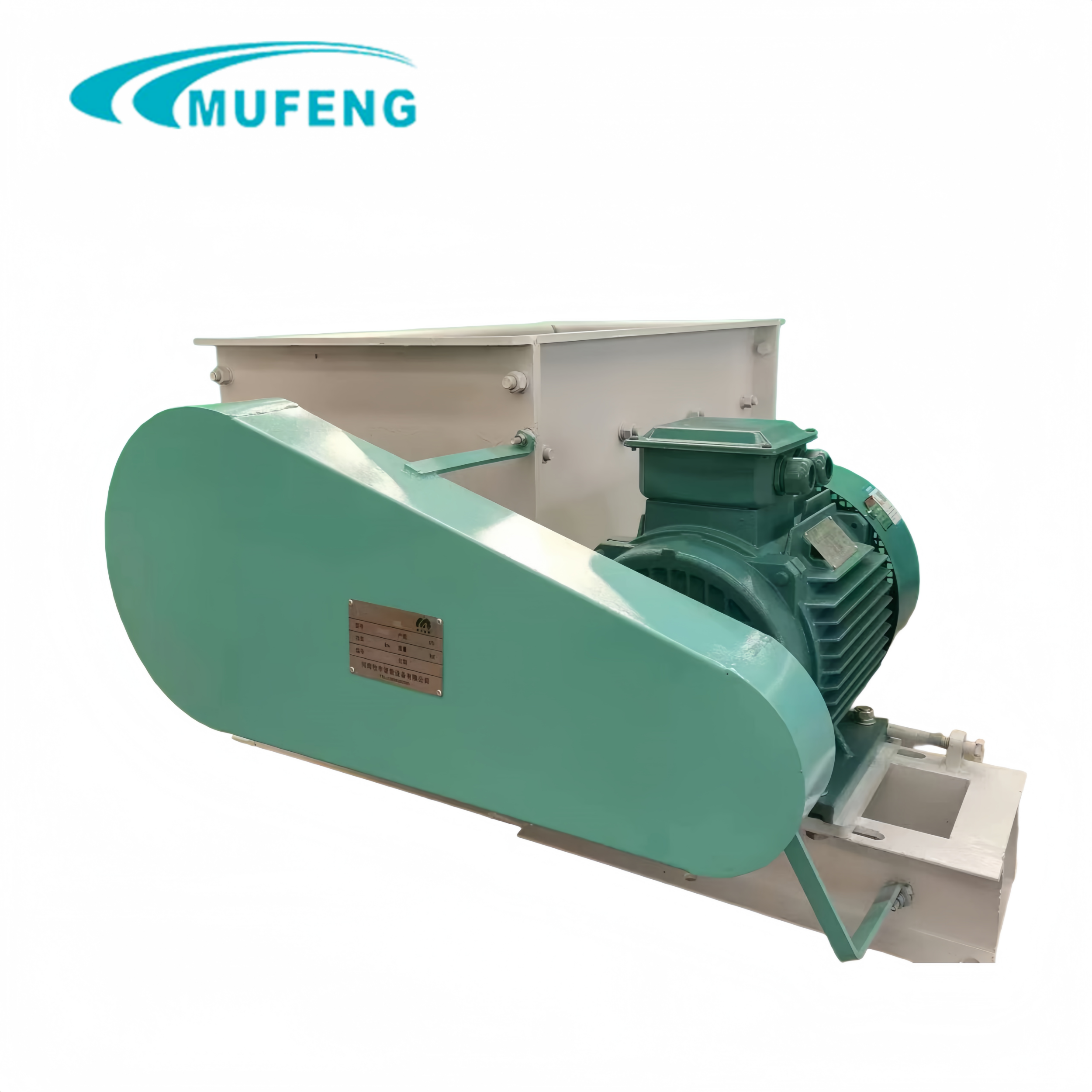

Compact structure, double roller structure, uniform crushing, and convenient and fast particle size adjustment;

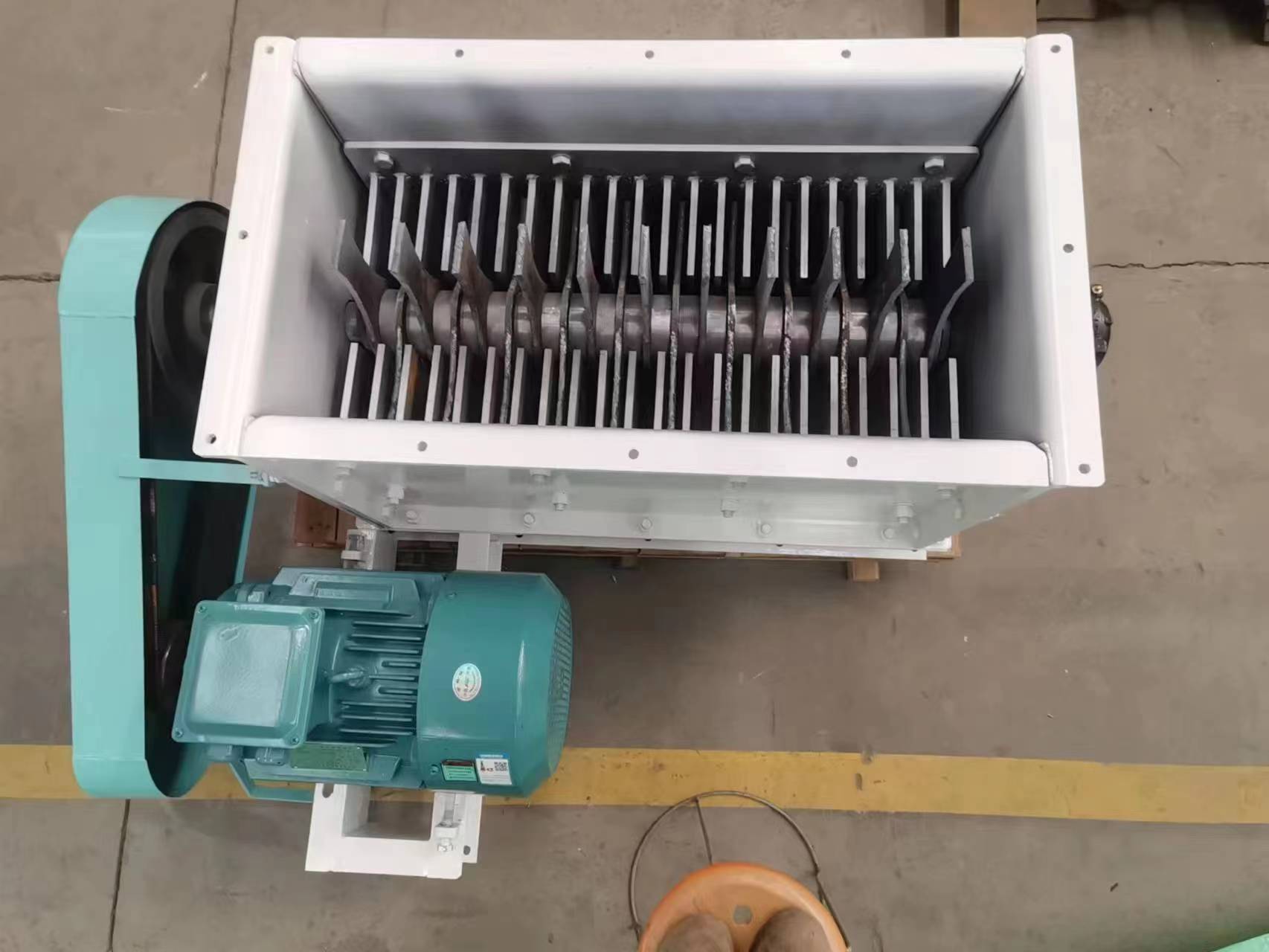

The roller implements differential speed, and the particle material is squeezed, sheared, and torn between the two rollers to achieve the ideal crushing effect;

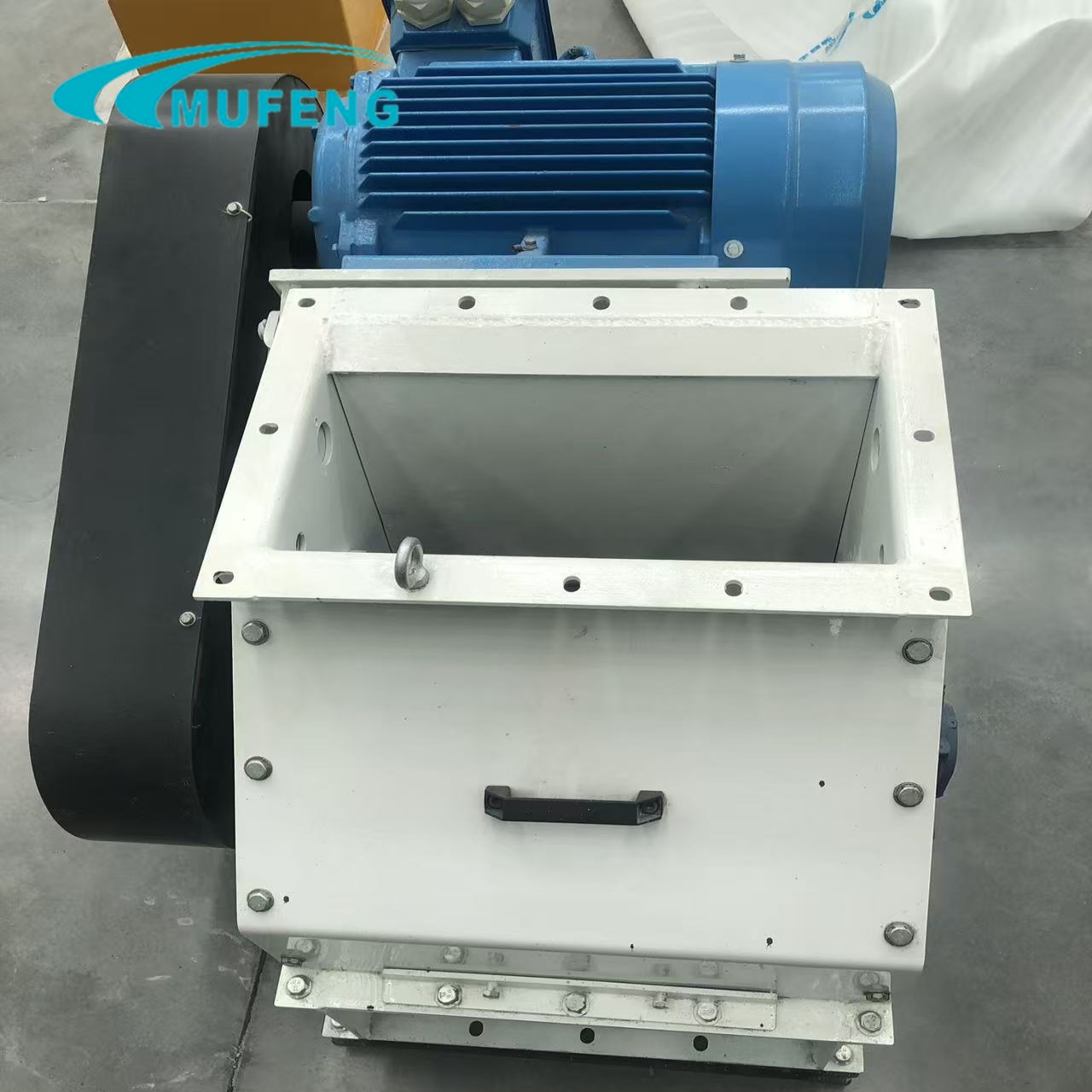

The unique feeding hopper and bypass device not only play a role in homogenizing the material, but also play a side flow role for materials that do not need to be crushed. During the side flow, automatic shutdown is achieved through a travel switch;
Adopting narrow V-belt transmission, the transmission is stable, with low noise, reliable operation, and convenient operation.
| Model | SSLG20×80 | SSLG20×110 | SSLG20×140 | SSLG20×170 | SSLG25×120 | SSLG25×165 |
| Capacity(t/h) | 3-5 | 5-8 | 8-12 | 10-15 | 12-17 | 15-25 |
| Power(kw) | 5.5 | 7.5 | 11 | 11/15 | 11 | 15/18.5 |
