During the granulation process of feed, when it is first started for production, the temperature rises relatively slowly. Before the required temperature for granulation is reached in the conditioner, the feed has already reached the discharge port. This part of the feed will be treated as waste due to non-compliance, and will be directly discharged from the bypass valve of the granulation machine without entering the granulation machine, resulting in waste of raw materials and increased energy consumption.
The waste generated during the startup process requires additional manpower and material resources to be disposed of, resulting in poor on-site production environment.

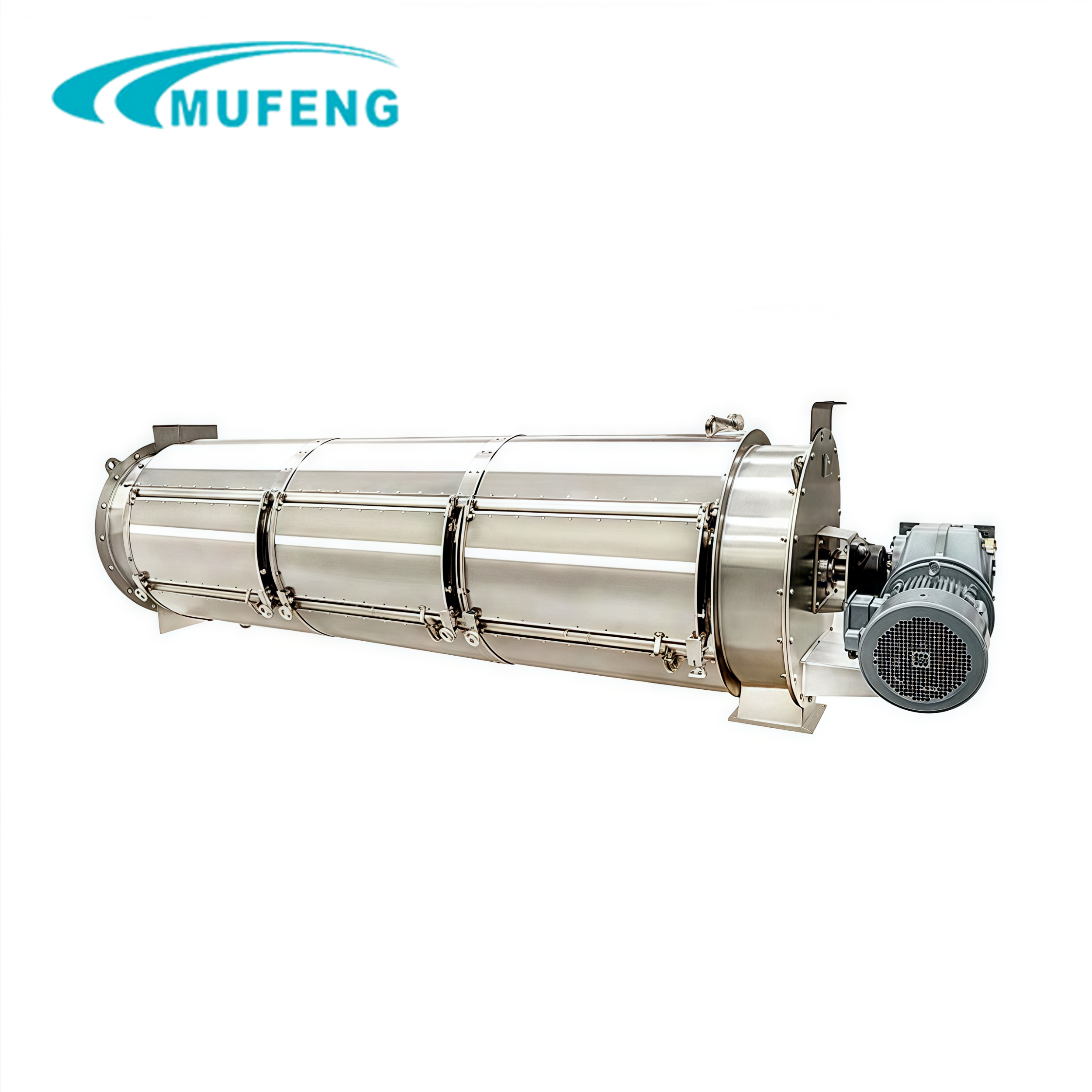

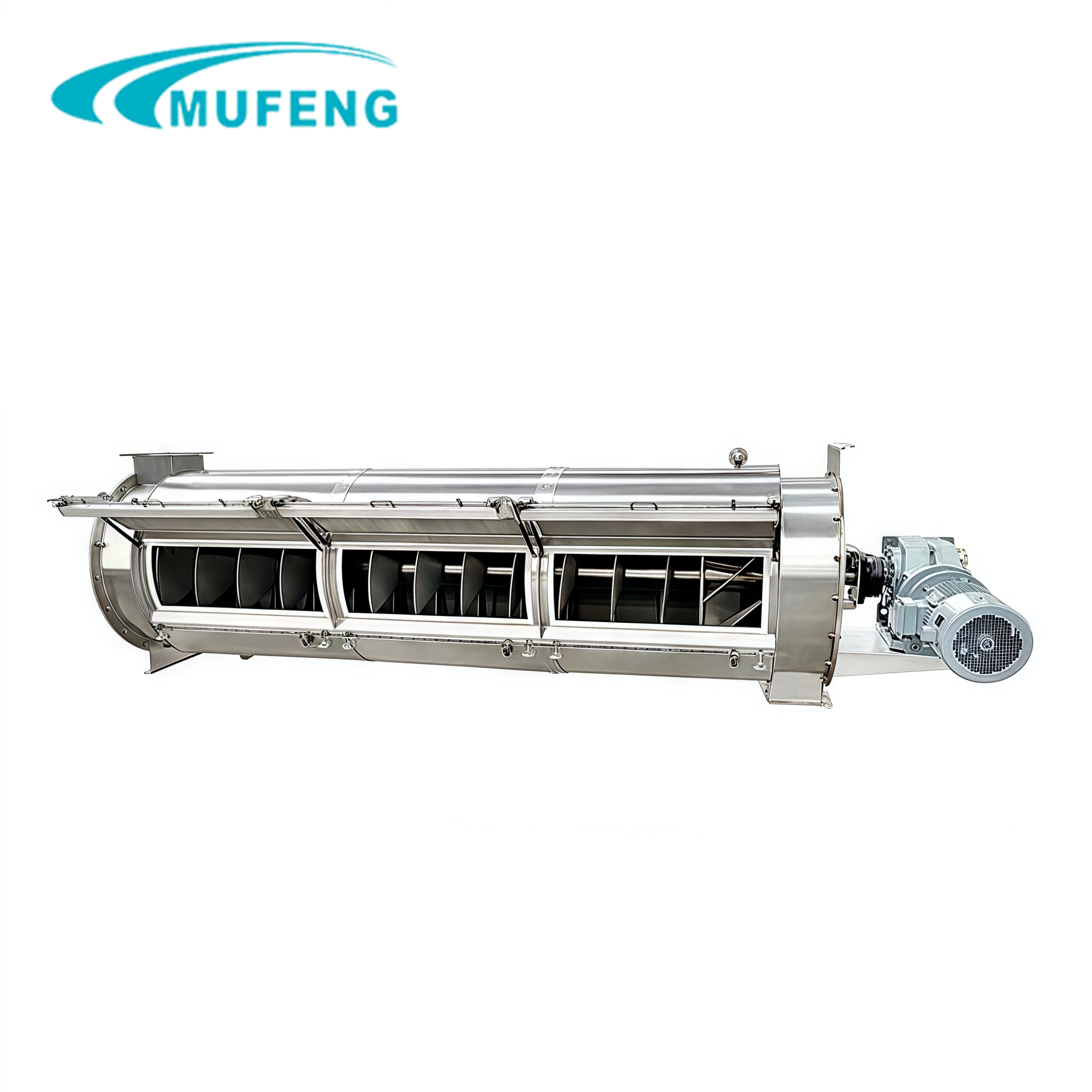

1. Through the combination of conditioner + quality maintainer, the conditioning temperature is >85°C, and the conditioning time can exceed 180s; variable frequency speed regulation can effectively increase the fullness, up to 40%~80%;

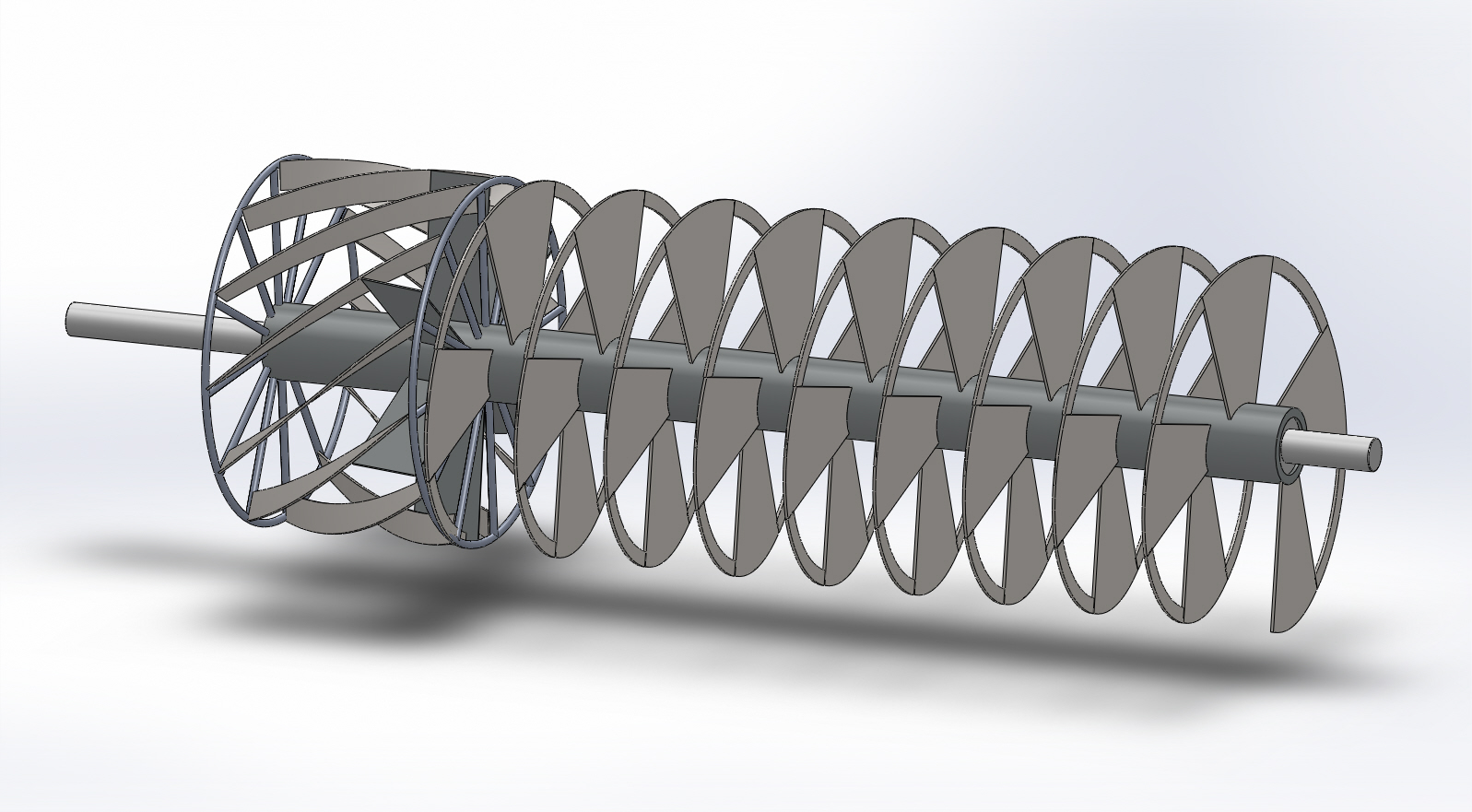

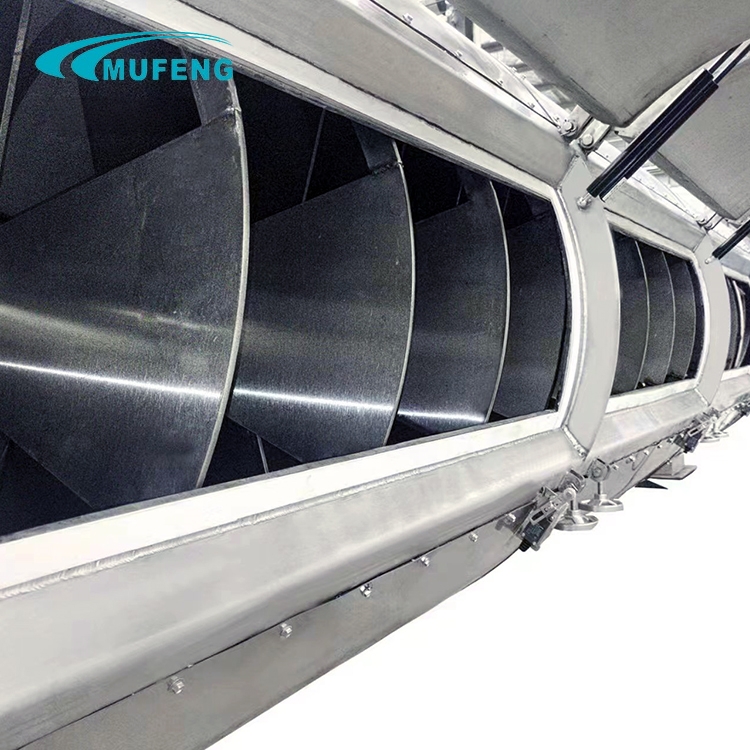

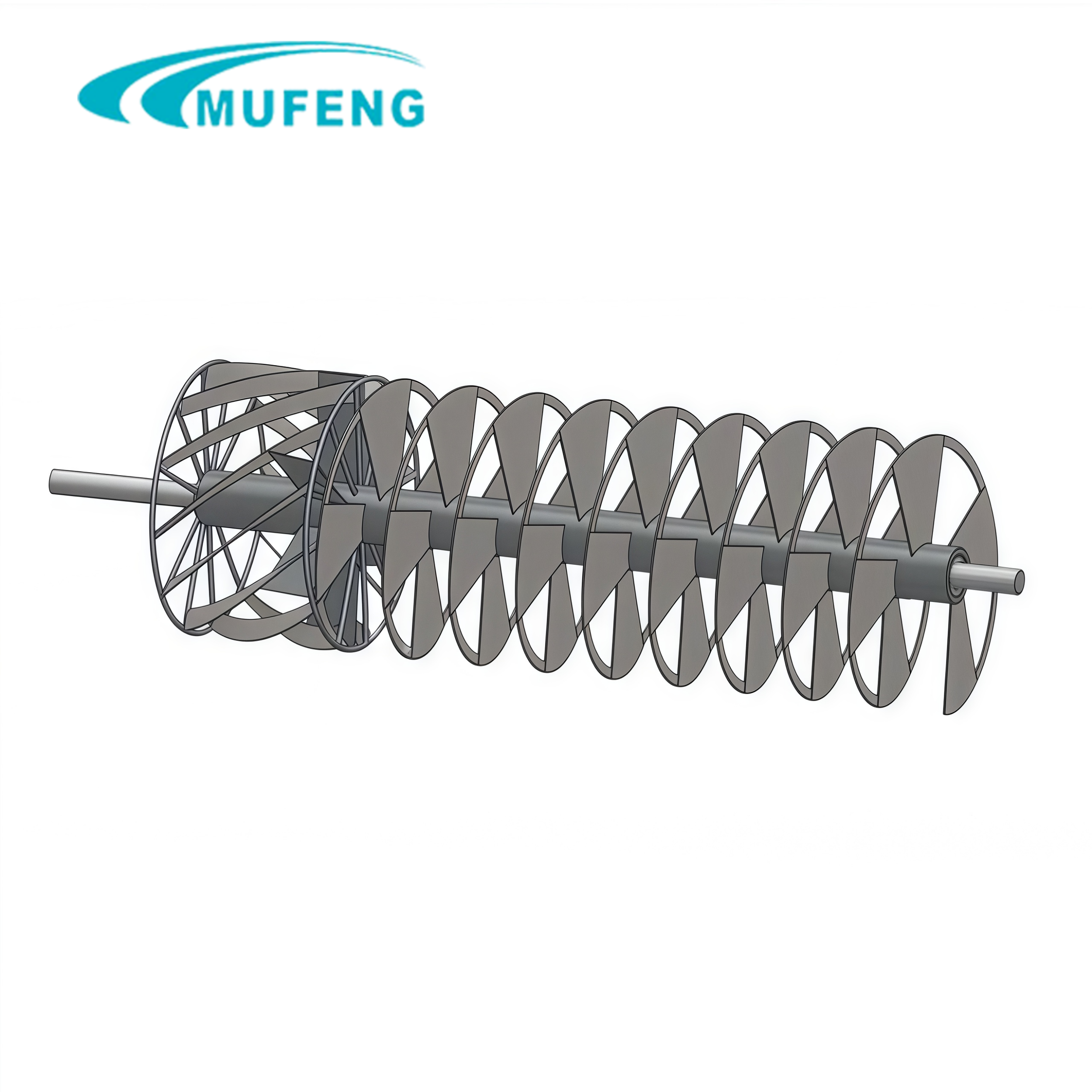

2. Clean and sanitary, the hollow spiral rotor effectively improves the filling degree; the terminal leveling device improves the uniformity of discharging, and the granulator current changes smoothly; the granulation process has less machine blockage and smooth operation;
Low residue, hygienic; all contact with materials is stainless steel;

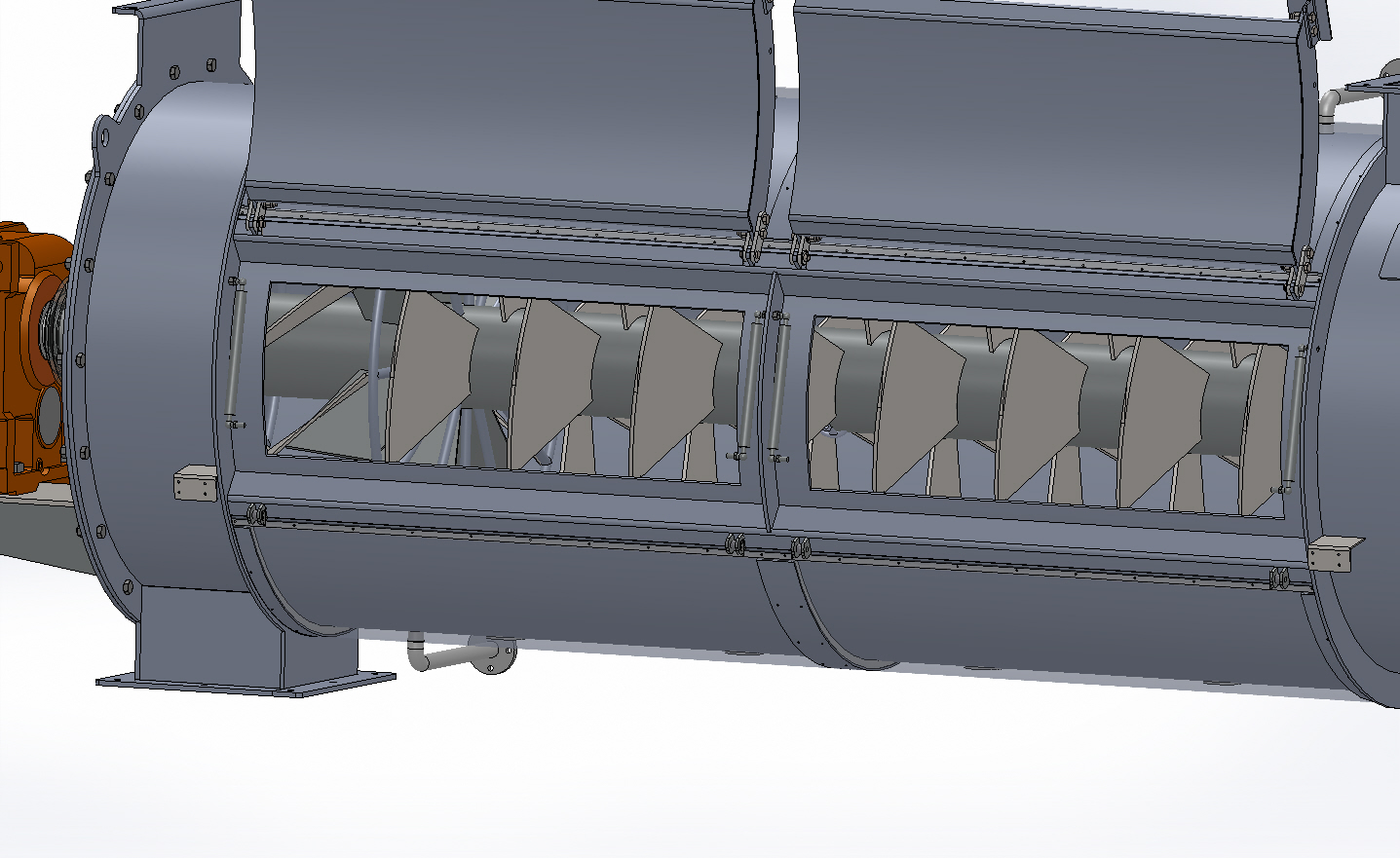

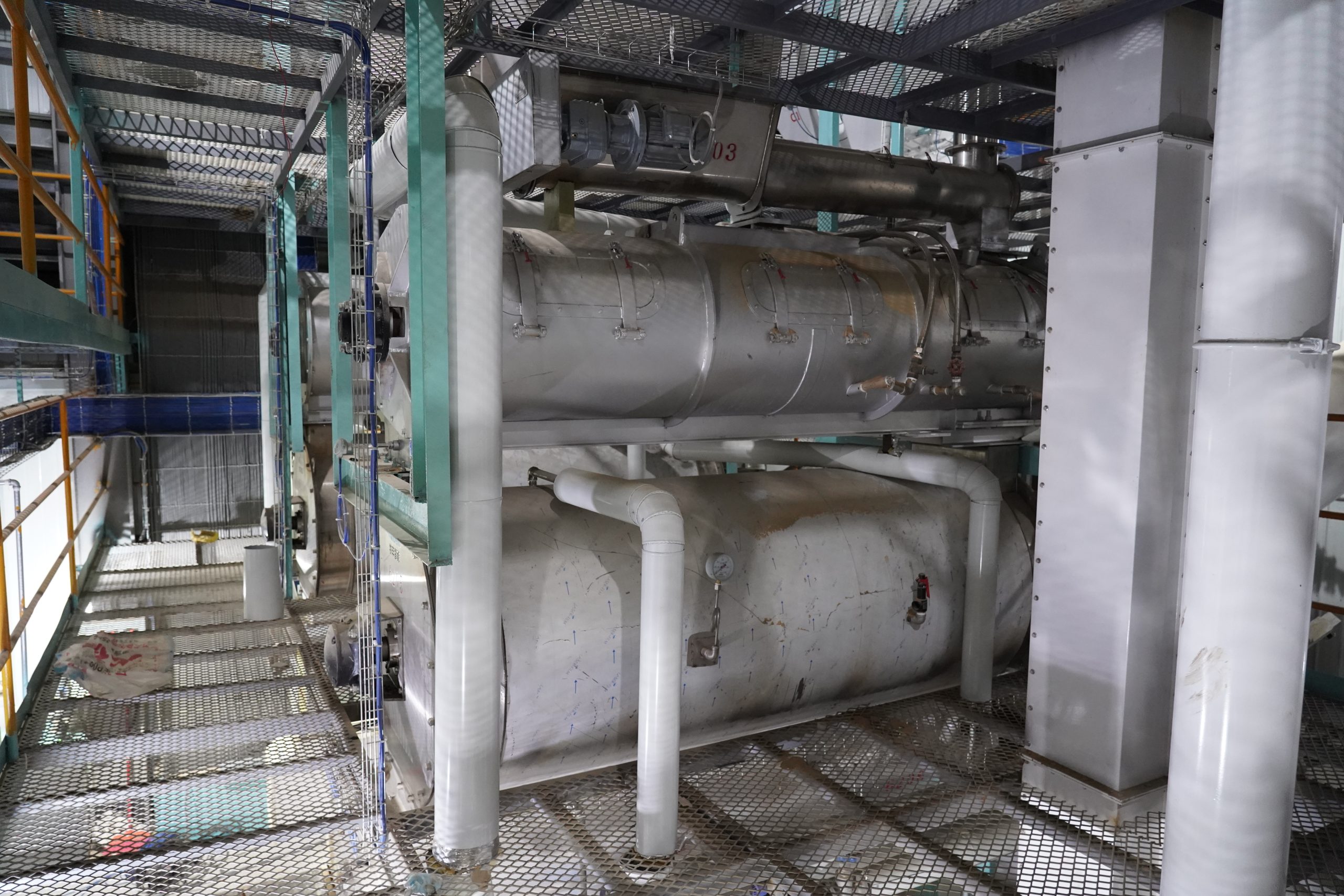

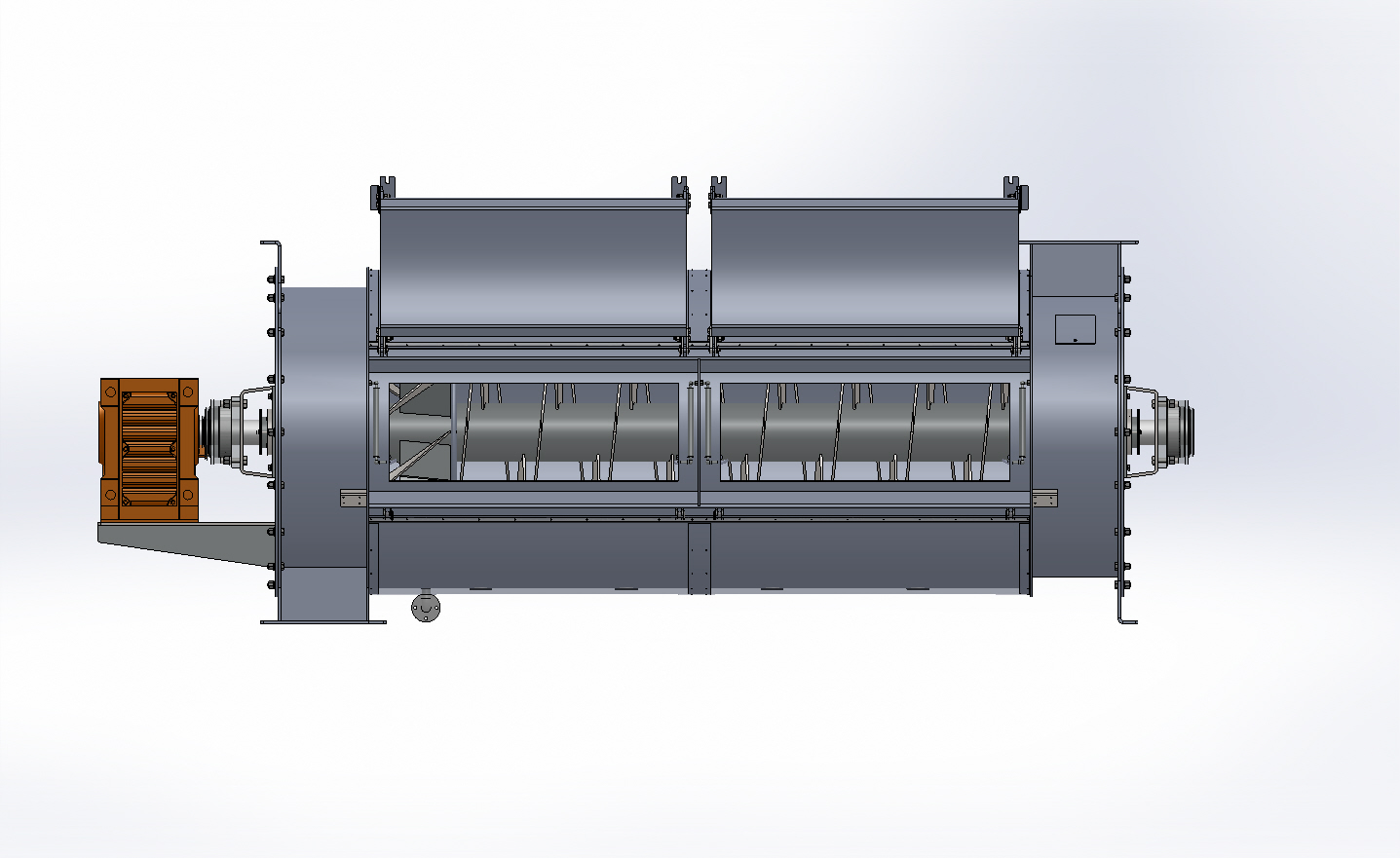

3. The whole length of the fuselage is jacketed for insulation, and the outer layer of the jacket is rock wool, which has good insulation effect and higher gelatinization degree; the jacketed integrated large access door is easy to open, easy to repair and clean, and there is no dead corner for cleaning; the door body Filled with thermal insulation cotton, all-round insulation;
4. Safe and reliable, the shaft end adopts an adjustable packing mechanism, which ensures reliable sealing, long service life, no leakage, and easy maintenance; each access door has a safety switch, and the motor cannot be started when the door is open, ensuring the safety of the operator;
5. Torque arm type reducer has long service life; the reducer is directly connected and has high transmission efficiency.
| Model | MFBZ600 | MFBZ800 | MFBZ1000 | STZJ1200 |
| Rotor diameter（mm） | 600 | 800 | 1000 | 1200 |
| Rotor length（mm） | 3000 | 3000 | 3000~4000（customized） | 3000~4000（customized） |
| Tempering time（s） | 120-240 | 120-240 | 120-240 | 120-240 |
| Power (kw) | 3 | 5.5 | 7.5 | 11 |
