The application of technologies such as automatic lubrication of the main shaft of the granulator, pressure rollers, and automatic adjustment of the roller die gap reduces labor intensity while improving production efficiency;
The conditioner’s self-cleaning barrel wall and rotor make it easy to clean internal residues and reduce manual cleaning time waste;
Reduce manual operations and ensure automated equipment operation.
Performance characteristics
High quality production
Precise system-wide moisture control and effective utilization of steam (measured steam utilization rate >92%) ensure the quality and productivity of the granulation system;
The use of forced feeding technology and special pressure roller configuration ensures the high hardness requirements of ruminant particles;
High-strength ring die design increases power per unit area by 15%, further improving particle quality.
■ Improve efficiency
Make regional and seasonal adjustments according to formulas and production models to ensure efficient production of ruminant feed;

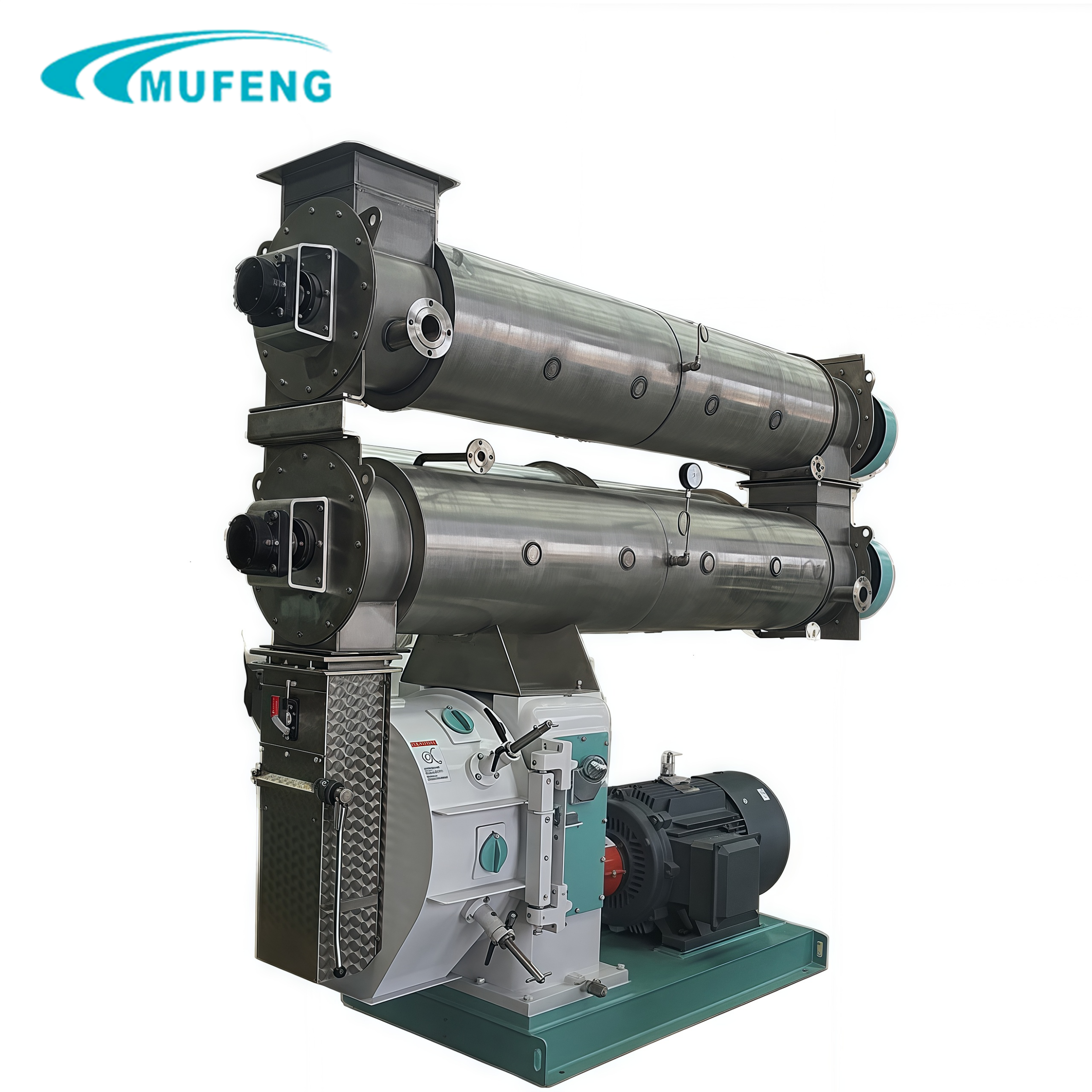

The steam shaft end of the STZN conditioner is added internally, there is no overflow and diffusion, and everything is in contact with the material and absorbed;
An external liquid adding system is equipped with molasses and secondary fluid adding technology to meet different needs for liquid adding amounts;
The application of automation such as automatic lubrication and electric lifting greatly reduces labor costs and improves production efficiency;
The use of forced feeding technology and special pressure roller configuration enables low bulk density and complex materials to be smoothly pressed;
It can achieve an output of 9-12 tons per hour (20%-40% grass meal addition), and the efficiency is increased by 15%-20%.
■ Reduce losses

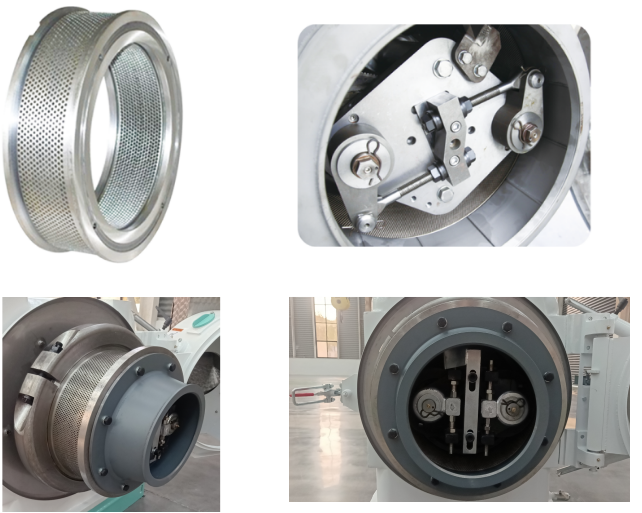

The ring die and pressure roller are the major expenditures of the granulator, accounting for more than 50% of the loss cost of the granulation system. The use of special ring die and pressure roller for rumination reduces the frequency of replacement and can save you hundreds of thousands of yuan per year;
The use of special wear-resistant blades and scrapers for ruminant forage formula reduces the frequency of replacement and reduces operating costs. The comprehensive operating costs can be reduced by more than 10%.

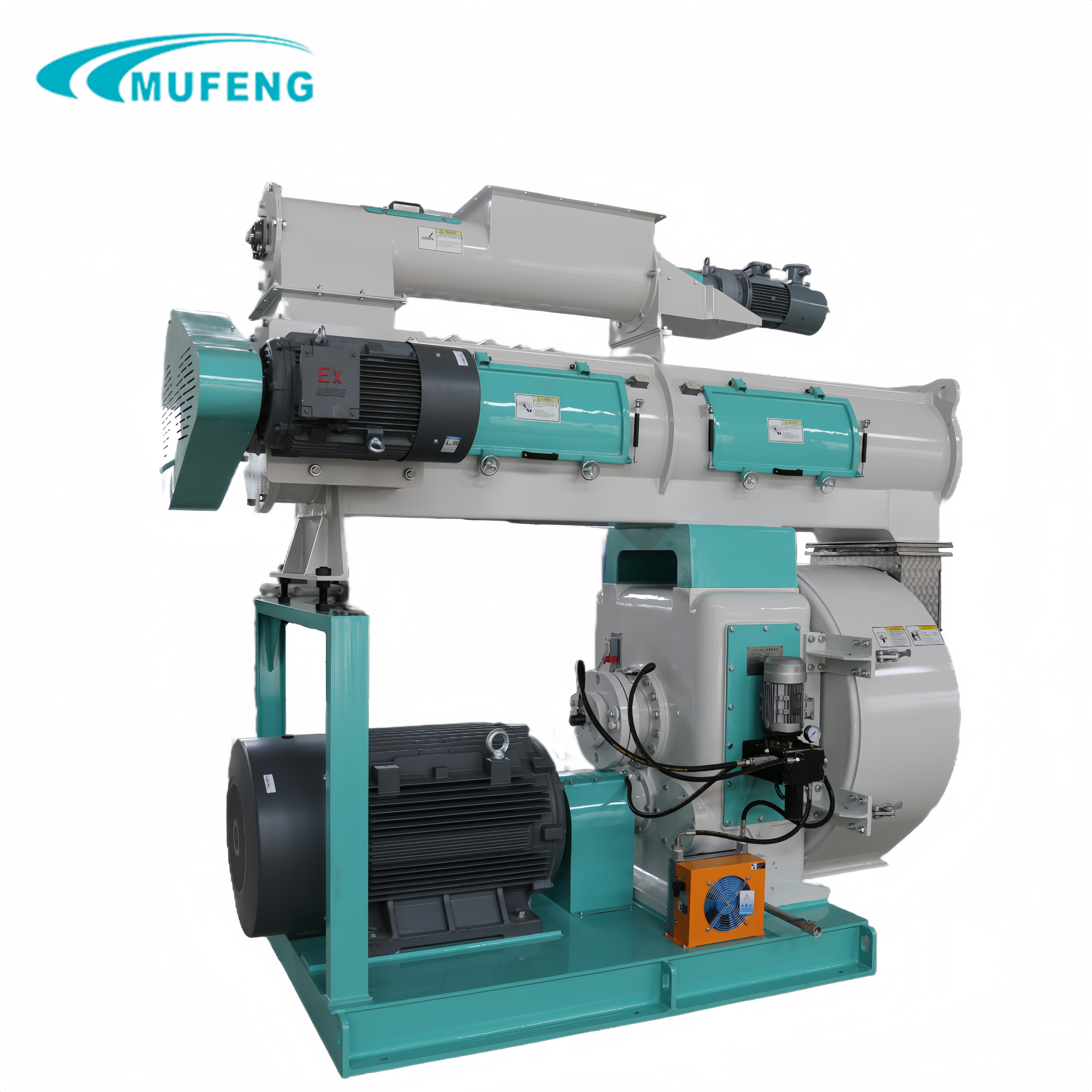

| Model | Capacity
(t/h) |
Motor Power(kw) | Conditioner power(kw) | Feeder power
(kw) |
Ring die diameter(mm) | Pellet size
(mm) |
| SZLH320 | 2-5 | 37 | 2.2 | 0.75 | 320 | 2-15 |
| SZLH350 | 3-7 | 55 | 3 | 1.1 | 350 | 2-18 |
| SZLH420 | 4-12 | 110 | 5.5 | 1.5 | 420 | 2-18 |
| SZLH508 | 5-15 | 132/160 | 7.5 | 1.5 | 508 | 2-18 |
| SZLH558 | 8-20 | 160/180 | 11 | 2.2 | 558 | 2-18 |
